PE100 Series

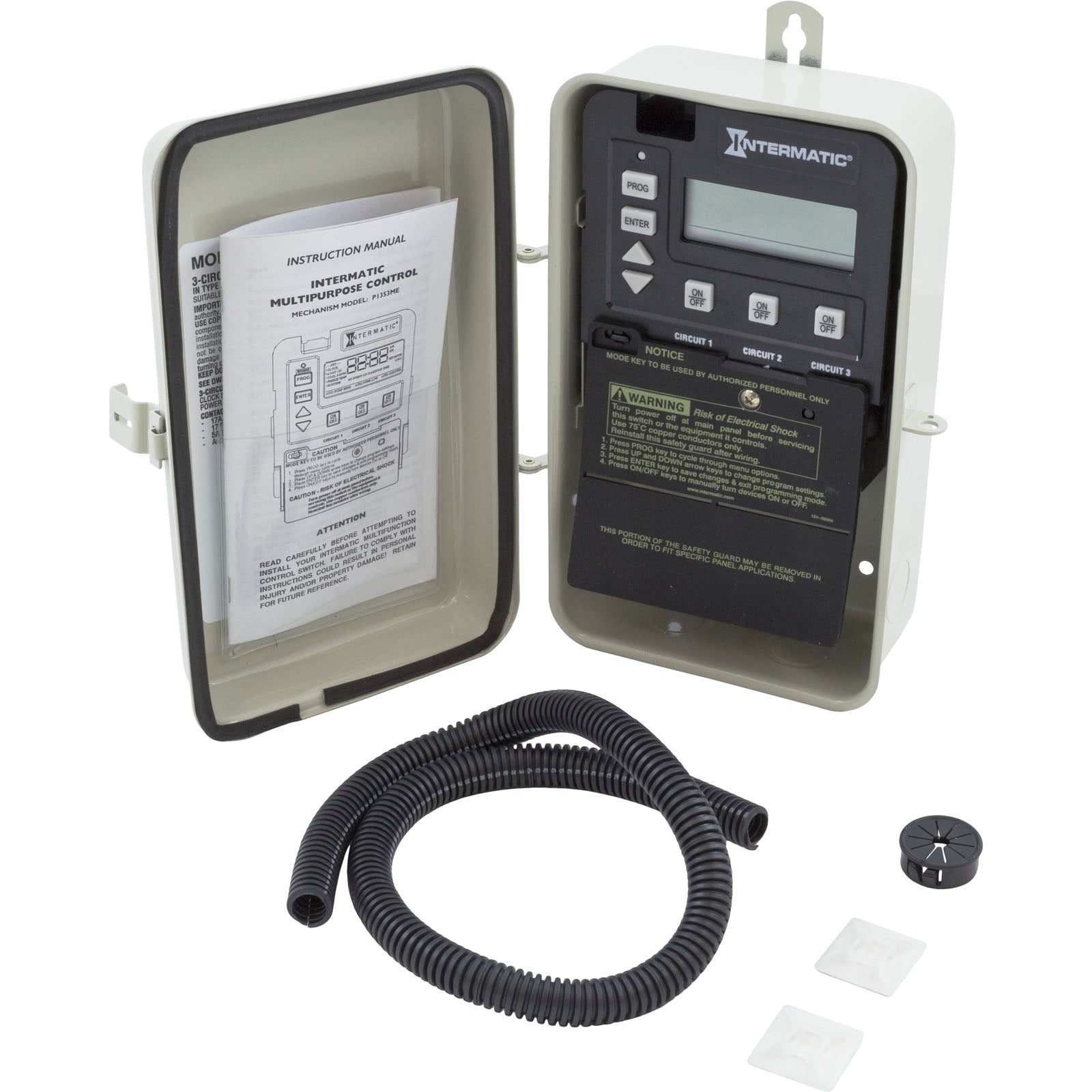

P1353ME & NEMA 3R Encolsure with Available Options

• For 1 and 2-speed pumps
• Controls 3 circuits
• 3 ON/OFF events per day
• 7 pre-programmed combinations to choose from
• Add on other pool/spa related evices

Applications:

• Single Speed Pump/Booster Pump Combos
• Two-Speed Pump/Booster Pump Combos
• Pool & Spa Lighting
• Water Features
• Gardens & Fountains
• Landscape Lighting

Specifications:
Enclosure: NEMA 3R rated for Indoor/Outdoor installation in beige finish
"P" suffix models are same dimensions, except made from outdoor grade plastic.
9-3/8" (23.8 cm) H x 5-1/2" (14.0 cm) W x 3-5/8" (9.2 cm) D
Knockouts: Combination 1/2" to 3/4" nominal knockouts, one on back and each side of enclosure and two on bottom
Switch Rate (each circuit): 20 Amp Resistive, 120-240 VAC, 50/60 Hz (20 FLA, 96 LRA), 120 VAC, 50/60 Hz (17 FLA, 80 LRA), 240 VAC, 50/60 Hz 5 Amp Tungsten, 120-240 VAC, 50/60 Hz 5 Amp Ballast, 120-240 VAC, 50/60 Hz
Shipping Weight: 3.7 lbs (1.7 kg)
Agency Approval: CSA/C-US
