Control, Gecko in.xe-5,P1,P2,Bl,Oz, Lt, Ac, 4.0kW, 115v/230v

Control, Gecko in.xe-5,P1,P2,Bl,Oz, Lt, Ac, 4.0kW, 115v/230v

Regular price $610.52 USD
Regular price Sale price $610.52 USD
Sale Sold out
Shipping calculated at checkout.
Title
This part includes only the replacement box with heater.

This Control System is WiFi Compatible, please see Tech Tips for information.


IN.XE-5-11-H4.0-1-2-B-O-D-60K-GD1

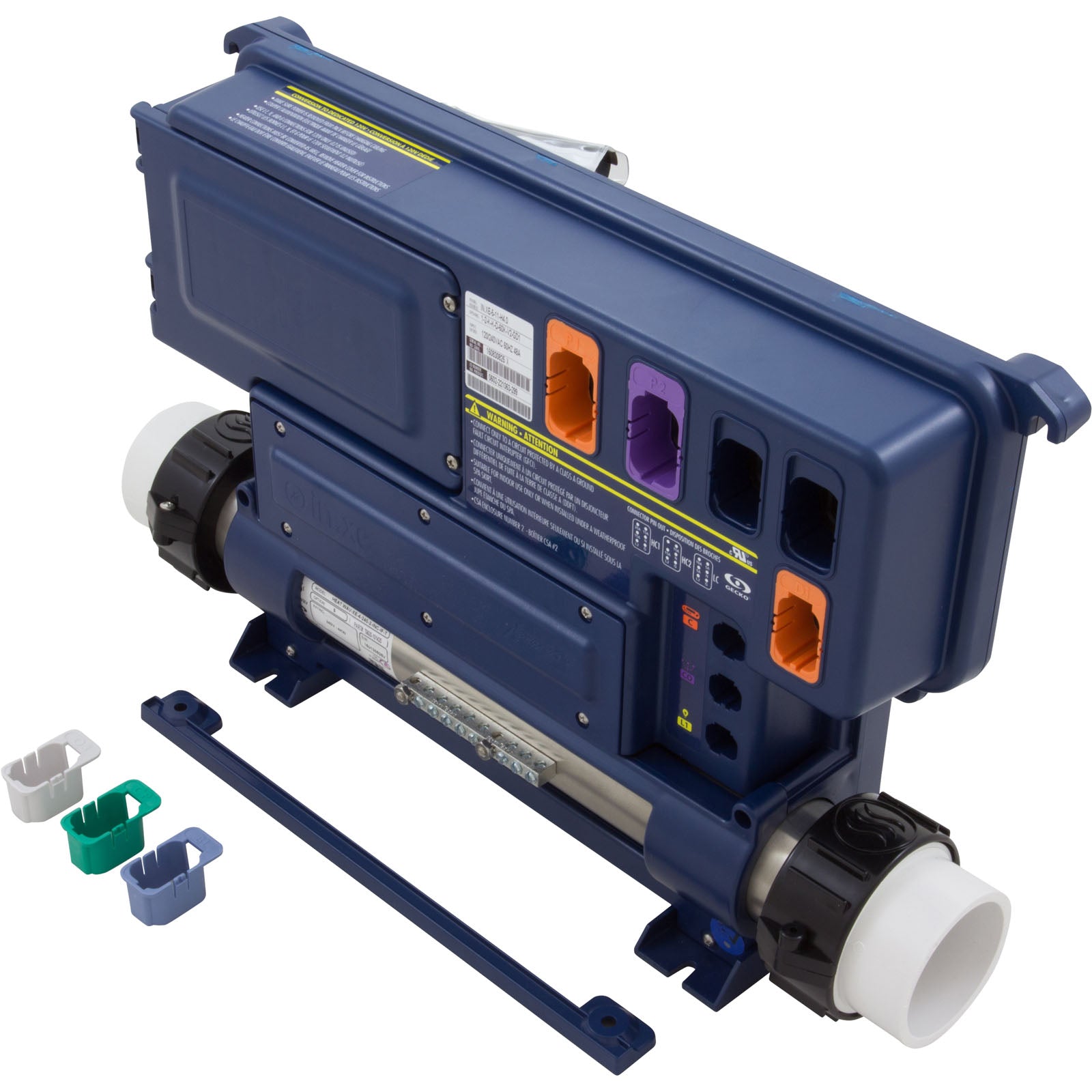

This innovative in.xe Aeware by Gecko spa control system contains available circuits as described below. To activate the circuit, simply remove the colored key enclosures from the field unit, replace the blanks on the new control box with the key enclosures, and plug in the existing cables. That’s it! Features:
  • High Current Pump 1 circuit, 1 or 2 speed, 115v or 230v, 20A max
  • High Current Pump 2 or HC Blower circuit, 1 speed, 115v or 230v, 20A max
  • Two Low Current AC relay-controlled circuits for blower or ozonator, 115v or 230v, 5A max
  • One Low Current AC direct power circuit for audio/visual accessories, 115v, 5A max
  • 4.0kW heat.wav heater, 2”s tailpieces x 15” length
  • Installation and Instruction manual
  • Two-Year manufacturer’s limited return and repair warranty
Control Box Dimensions

Height Width Depth
11-3/4" 19-5/8" 5"
