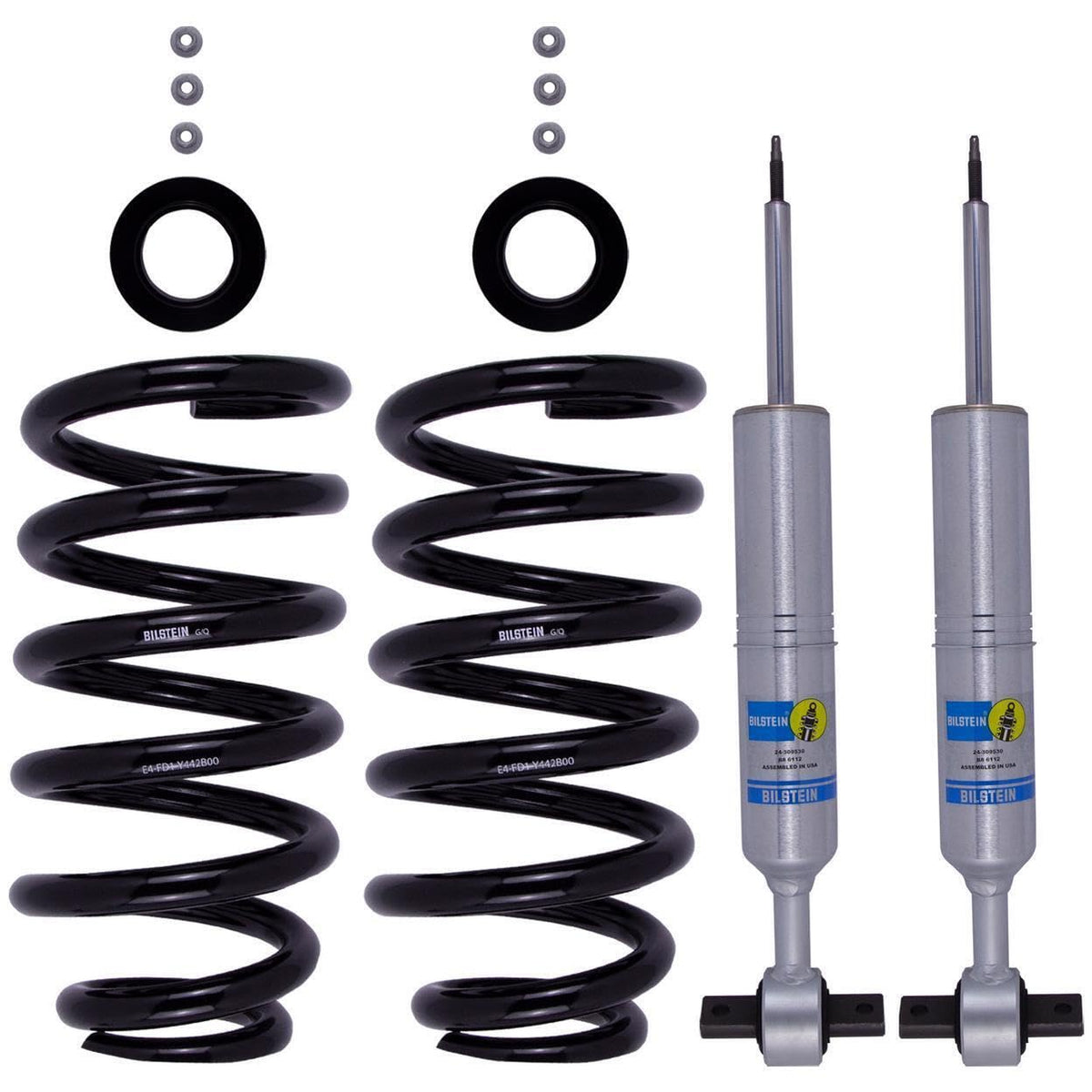

The 47-309524 B8 6112 front kit combines two monotube shocks, two matched coil springs and two billet-aluminum spring seats. Snap-ring grooves provide adjustable spring-seat positions.

Specifications

• Collapsed / extended length: 17.78 / 21.97 in
• Travel: 4.19 in
• Piston diameter: 60 mm
• Body outside diameter: 2.65 in
• Shaft diameter: 18 mm
• Front main spring rate: 600 lb/in
• Finish: Zinc-plated dampers; black springs
• Reservoir: No
• Boot included: No

Installation and package notes

• Use the exact application and installation chart: lift height and eligibility depend on model, trim, engine and existing suspension.
• The manufacturer family overview is not a blanket lift-height guarantee for this exact application.

Product identification

• Brand: Bilstein
• Manufacturer part number: 47-309524
• UPC / GTIN: 651860860817

Package information

• Package Dimensions: L 26.8 in × W 4.15 in × H 4.15 in
• Package Weight: 45 lb

These are package measurements, not installed-product dimensions.
